Quick
Reference Handbook and Performance Supplement
ISBN 1-878595-01-6, Ringbound only, $100.00 USD
Available only under official U.
S. Government procurement contract...
This Handbook Features...
-
Comprehensive Simplified PPC Data
revolutionizes performance planning speed and
accuracy. Complete your performance planning
in a snap!
-
Logical Flow Diagram Procedures. Refresh
your memory, work your planning and performance
considerations step-by-step through a concise
decision tree.
-
Integrated with other Pubs. The latest TM
1-1520-237-10 data are integrated with
guidance from other publications i.e. AR 95-1, TC
1-212 and CFR's etc.
-
Tabbed Indices organize procedures and data the
way you actually fly; TAKEOFF, CRUISE and
LAND. Also provided are
LIMITS/SPECIFICATIONS, IRREGULAR, EMERGENCY and
ADDITIONAL Procedures and a PROCEDURAL
INDEX.
-
Conveniently Sized to the "-CL". More than 300
heavy durable pages measure 4.5 x 8 inches. Seven pre-punched equally spaced holes allow the
handbook to be "ringed" just like the "-CL".
-
Three Handbooks in One. Performance data
covering CLEAN, HI-DRAG
(ESSS) and VOLCANO configurations are "color coded". Each page clearly
indicates aircraft designation, power plant and data
basis.
NO MORE PPC BLUES
Completing the Performance Planning Card (PPC)
can be time consuming and tedious, but not any more.
The UH-60A/EH-60A Blackhawk Aviator's WingNotes,
Quick Reference Handbook developed by
an Army Aviator for professional aviators rated on the
UH-60A/EH-60A.
No more "chase-around"
charts!... No more interpolating graphs!...
Compare TM 55-1520-237-10 and Blackhawk Aviator's
WingNotes
side-by-side
TM
55-1520-237-10 |
UH-60A/EH-60A Blackhawk Aviator's
WingNotes |

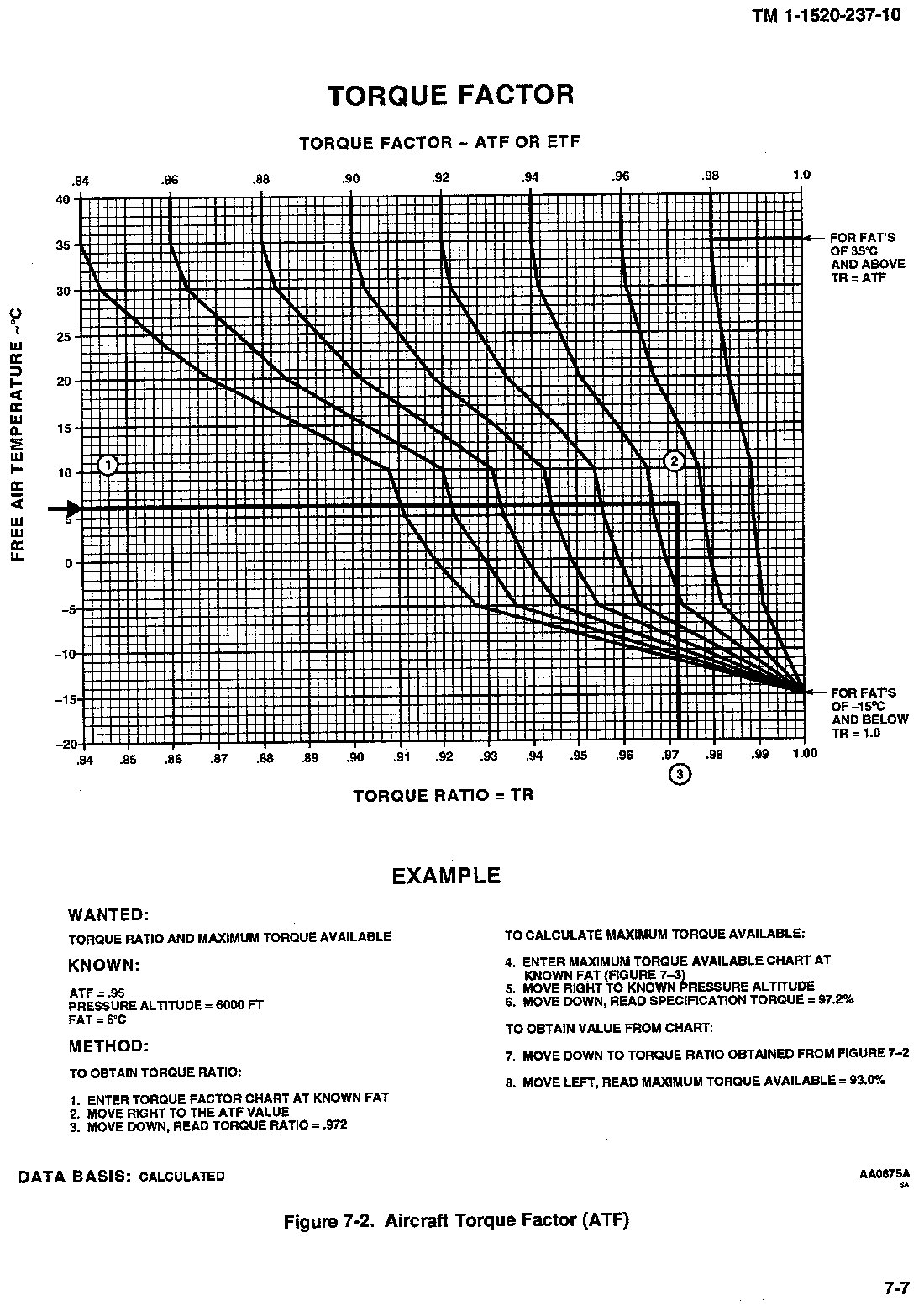

Figure 7-2,
Aircraft Torque Factor (ATF),
pg 7-7 |

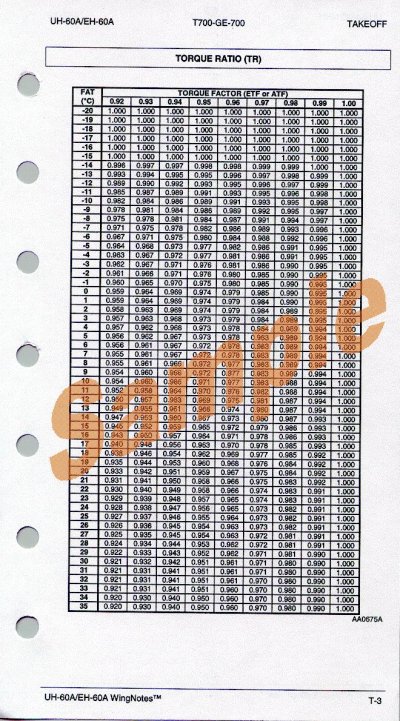

TAKEOFF,
Torque Ratio (TR),
(pg T-3)
TR values to third decimal place precision.
FAT's in increments of one degree celcius. |

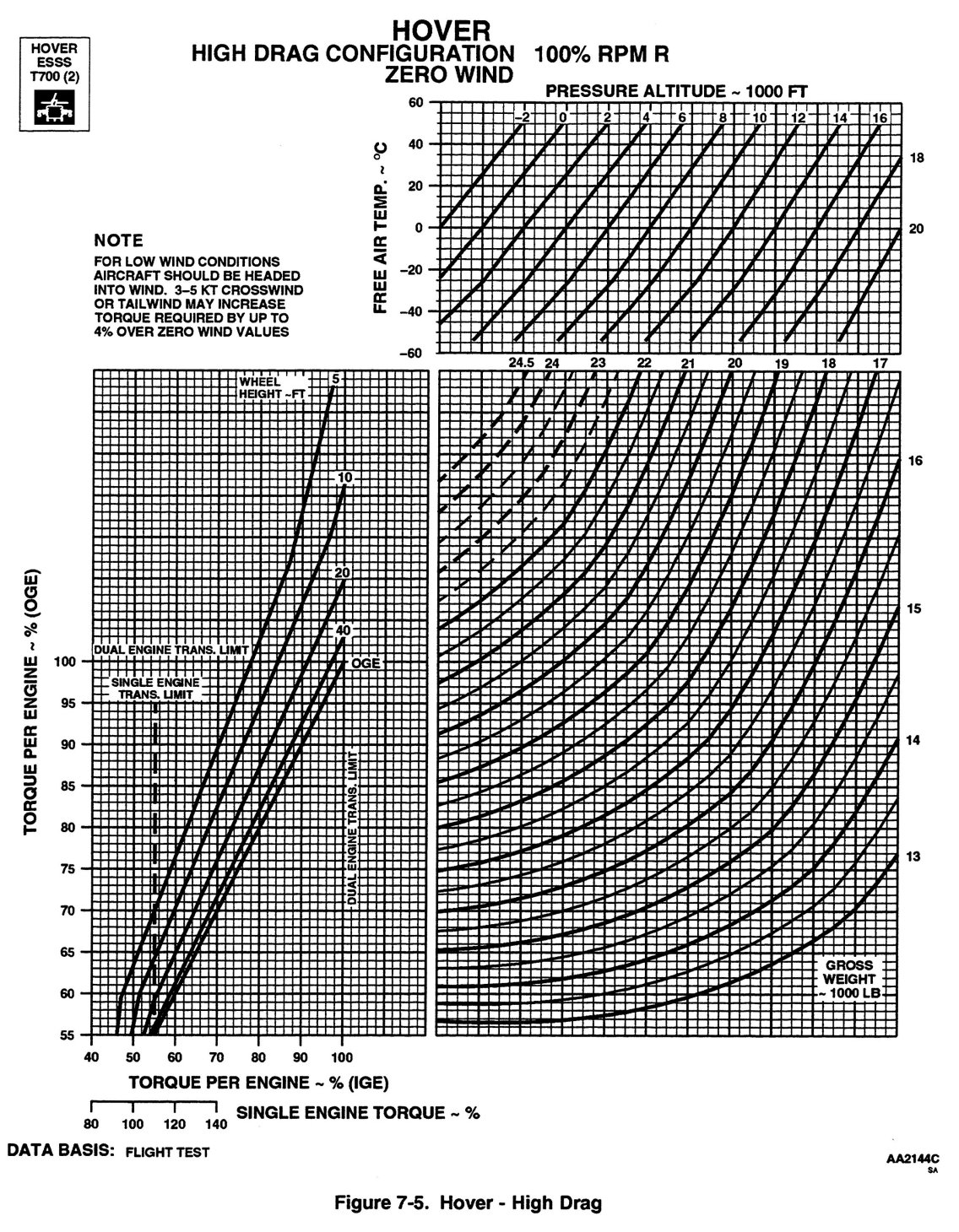

Figure 7-5,
Hover - High Drag, pg 7-12, C2
Can
you hold a loose leaf binder in your lap at the controls?...
Tired of fiddling with straight edges?...
|

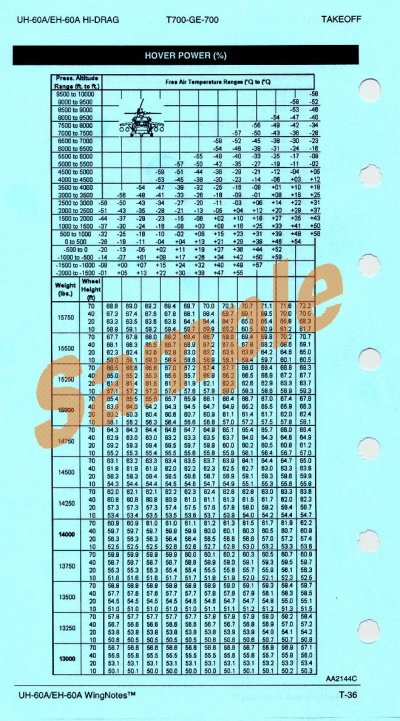

TAKEOFF,
Hover Power (%),
(pg T-36)
More accurate results.
First time.
Everytime. |

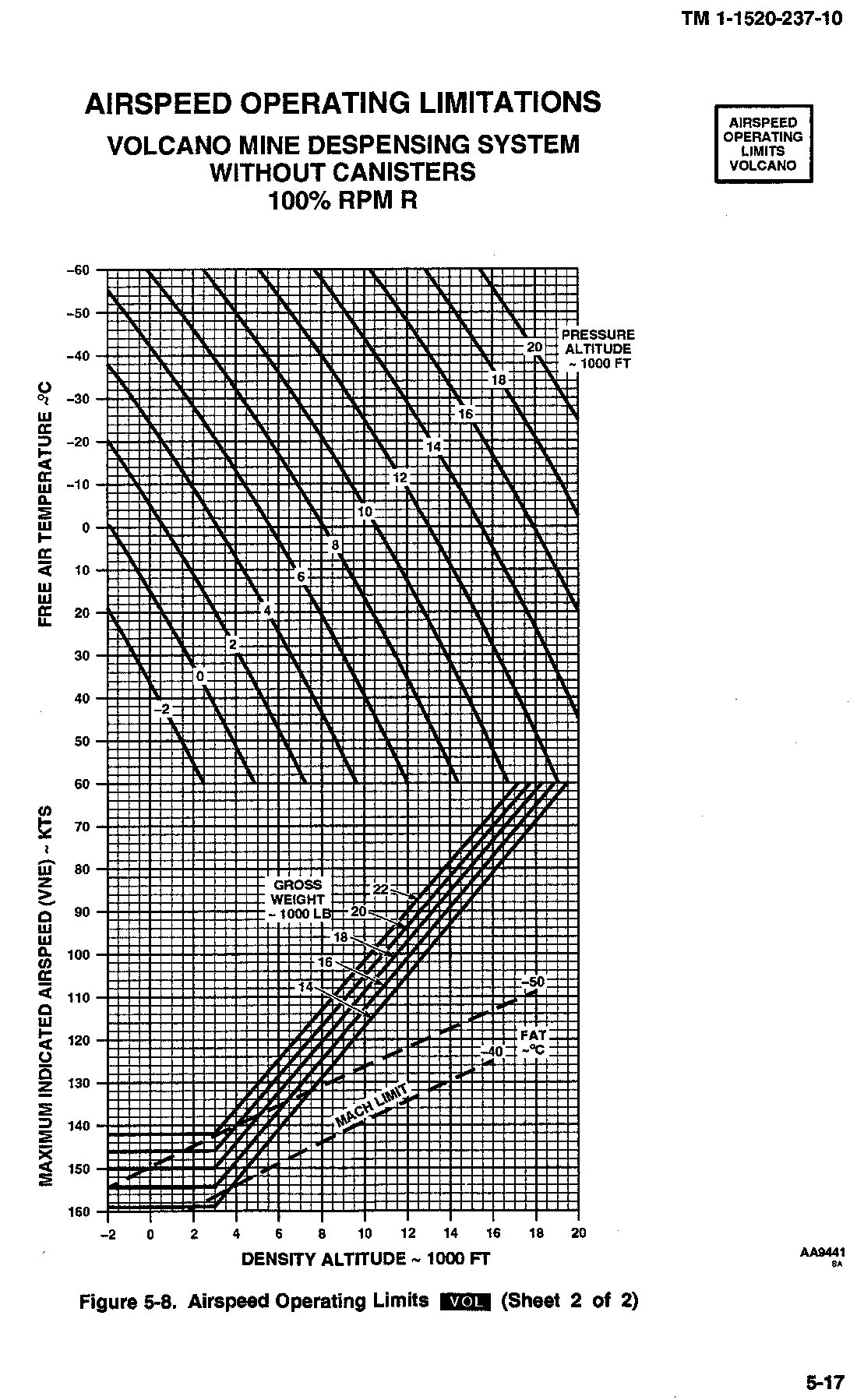

Figure 5-8,
Airspeed Operating Limits VOL
(Sheet 2 of 2),
pg 5-17 |

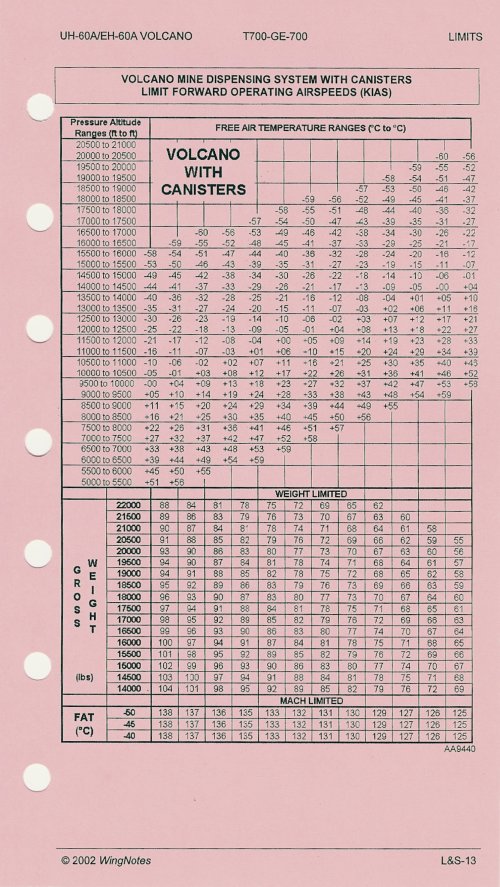

LIMITS
& SPECIFICATIONS,
(pg L&S-13)
WingNotes means Quick...
When it's time to Reference.
|
Logical Flow Diagram Procedures precede each set of
data
|

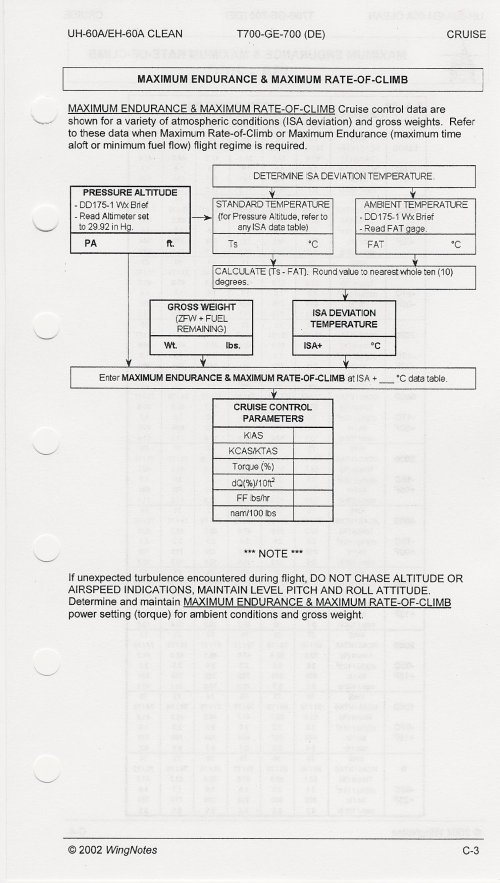

Cruise
Control, MAXIMUM ENDURANCE & MAXIMUM RATE-OF-CLIMB procedure
(pg C-3)
Condition/Action Flow Diagrams (C/AFD)
like this always precede data
tables.
|
|

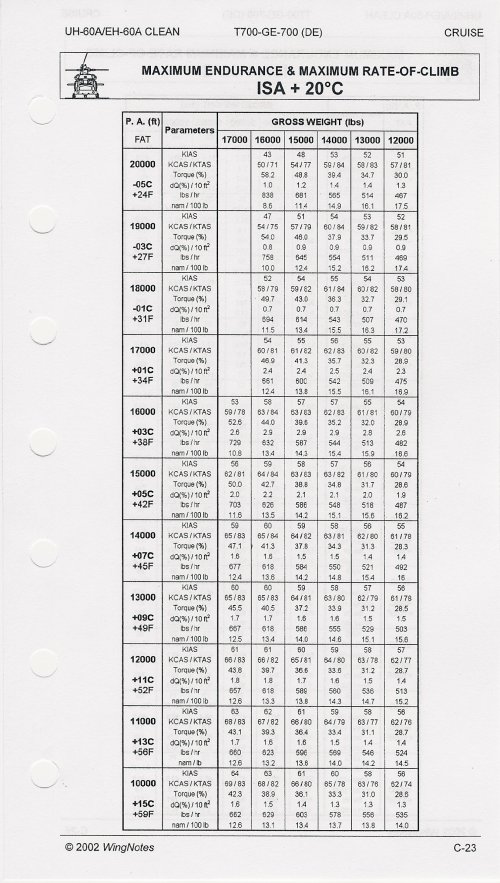

Cruise
Control, MAXIMUM ENDURANCE & MAXIMUM RATE-OF-CLIMB, ISA + 20°C data
table (pg C-23) Data block includes:
- KIAS, KCAS, KTAS
- Torque (%)
- Torque (%)/10 sq. ft flat plate drag!
- Fuel Flow (lbs/hr)
- Fuel Mileage (Specific Range)!
|
|
|
|
